Expression 62 Plus Laminating Equipment Wide Format

MADE IN USA

Lee Ryder Lamination

1-800-624-1980

Office: 305-893-2762 Fax: 305-893-2775

E-mail: office@leeryder.com

EXP 62 Plus Laminator

Working Width: 61"

Speed: 1-10 fpm

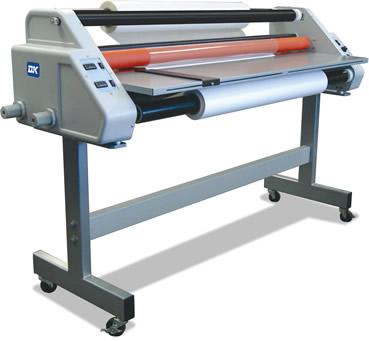

Expression™ 62 Plus



The EXP 62 Plus Laminator offers you the perfect finishing solution for your wide format graphics up to 61" wide. With its easy to use display and versatility of using either pressure sensitive or thermal laminating films, the EXP 62 Plus Laminator is the perfect machine for all your wide format finishing needs.

Specifications:

Working Width: 61"

Laminator Width: 80"

Height: 50"

Depth: 28"

Net Weight: 500 lbs

Shipping Weight: 620 lbs

Speed: 1-10 fpm

Maximum Temperature: 300°F

Maximum Aperture: 1/2"

Roller Diameter: 4 1/6"

Air: N/A

Electrical: 230V single phase 30 amps

Stand: (included)

Release Liner Rewind: (included)

Foot Switch: (optional)

Slitter Kit: (optional)



Features

Easy To Use

Mounter, Laminator, Encapsulator

Fast set-up and easy operation.

Roller lift for easy film loading

In-line slitter for trimming during lamination(optional)

Variable roller pressure

Accepts low-melt, thermal, and pressure sensitive films

Accommodates substrates up to 1/2" thick

Accommodates rolls up to 8" in diameter

Release liner rewind (included)

Operator-Friendly

"Ready" and "Wait" lights indicate when the laminator has reached preset temperatures

Independent upper and lower electronic temperature controls with led display

Spring-Loaded adjustable pressure on laminating and pull rollers for smooth, even lamination

Footswitch allows hands-free operation for guided materials during lamination (optional)

Auto-grip shafts for easy loading of film

Heavy Duty

Designed for mounting and laminating low-temp, thermal, and pressure sensitive films

Heated Rollers for a variety of films

Heavy-Duty forward/reverse variable speed motor

Sturdy feed-back table with adjustable feed guide

Heavy-Duty top grade silicone rubber rollers

Heavy-Duty chain and sprocket drive

Cooling Fans

Four high-capacity forced air cooling fans
