Expression 63 Laminating Equipment Wide Format

MADE IN USA

Lee Ryder Lamination

1-800-624-1980

Office: 305-893-2762 Fax: 305-893-2775

E-mail: office@leeryder.com

EXP63

Working Width: 63"

Speed: 0-10 fpm

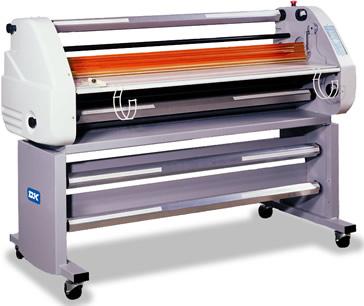

Expression 63



The EXP 63 Laminator is a full featured machine with all the "bells and whistles". Whether you plan on laminating, mounting or encapsulating your media, the EXP 63 Laminator offers the functionality of all three. The extra wide chassis allows flexibility in mounting and laminating your printed media. With the extra storage and pullout mandrels, changeover from project-to-project is a breeze.



Features:

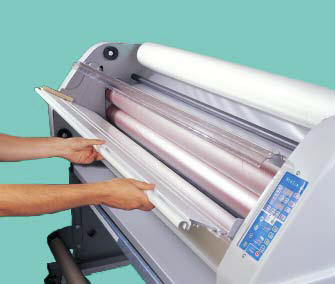

Pivoting feeding tray provides easy loading of film rolls.

Film tension adjustment button.

Graduated self locking mandrels.

High quality heated rollers.

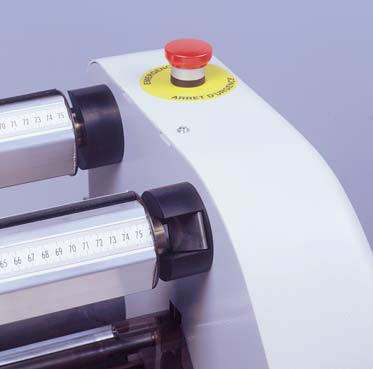

Three emergency stop buttons.

Roller Guard for safety and protection.

Stand with storage space.

Plug & Play: no compressor or special electrical output neccesary.

Release liner rewind.

Foot control pedal for "hands-free" operation.

Adjustable support and lateral stop.

Length cutters for cutting edges of your document while laminating.

MADE IN THE USA



Specifications:

Working Width: 63"

Laminator Width: 77"

Height: 54"

Depth: 30"

Net Weight: 713 lbs

Shipping Weight: 819 lbs

Speed: 0-10 fpm

Maximum Temperature: 285° F

Maximum Aperture: 1"

Roller Diameter: 4 1/6"

Air: N/A

Electrical: 230V/ 50-60HZ single phase 20 amps

Stand: (included)

Release Liner Rewind: (included)

Foot Switch: (optional)



Length Cutters

Heated Silicon Rollers



Feed Tray

Self-Locking Pull-Out Mandrels
